Huawei's Tau Scaling Law: A Technical Deep Dive Beyond the Hype

Huawei's Tau Scaling shifts semiconductor optimization from geometric transistor shrinking to time-domain compression through innovative vertical integration techniques.

Huawei’s announcement of Tau (τ) Scaling Law has generated considerable industry discussion. After reviewing the technical paper and company materials, we’ve attempted to cut through the marketing narrative to assess the substantive implications.

To be fair, Huawei has proven itself a master of strategic positioning. Whether Tau Scaling represents a genuine paradigm shift or not, the company has already succeeded in its primary objective: steering industry conversation toward a technological direction that plays to its strengths. In an environment where access to cutting-edge EUV lithography remains restricted, reframing the competitive battlefield from “geometric scaling” to “time-domain optimization” is shrewd corporate strategy.

But beyond the positioning and the noise, there’s something worth taking seriously here. For investors tracking the semiconductor sector, this isn’t just another incremental technology announcement. It’s a signal that the economic foundations of the chip industry are being rewritten, and understanding this shift could be critical to identifying the next decade’s winners and losers.

Table of Contents

This article contains the following sections:

• Moore’s Law Faces Physical and Economic Bottlenecks

• τ Scaling: Redefining the Optimization Target

• LogicFolding: Circuit-Level Time Compression

• Manufacturing Implementation of LogicFolding

• System-Level Extension of τ Scaling

• The Real Relationship Between EUV Shortage and LogicFolding

• A Larger Industry Question

• Why Hasn’t NVIDIA Adopted a Similar Approach?

• Conclusion

Moore’s Law Faces Physical and Economic Bottlenecks

For the past fifty years, the semiconductor industry’s prosperity has been built on a simple yet powerful principle: Moore’s Law. In 1965, Intel co-founder Gordon Moore observed that the number of transistors on integrated circuits roughly doubles every two years. Combined with Dennard scaling proposed by Robert Dennard in 1974, geometric scaling brought the industry nearly half a century of exponential growth. Transistors became smaller, chips faster, power consumption lower, and costs cheaper. This virtuous cycle supported the entire information technology revolution, from personal computers to smartphones, from the internet to artificial intelligence.

But this golden age is ending, and it’s ending from two directions simultaneously. Physically, geometric scaling has clearly stalled after the 7nm node. While transistors can still shrink, the magnitude of performance improvement is narrowing. The reasons are multifaceted: parasitic resistance and capacitance in transistors are beginning to dominate the delay budget, lithography’s physical resolution is approaching its limits, and even with extreme ultraviolet (EUV) light at 13.5nm wavelength, it’s difficult to continue significantly reducing feature sizes. More fundamentally, the performance gains from size reduction are diminishing while process complexity is rising exponentially.

The economic calculus may be harder to overcome than physical limits. A single EUV lithography machine costs over $150 million, and advanced processes require multiple machines working together with multiple exposures—these depreciation costs must ultimately be amortized across each chip. Mask costs are also soaring; the 7nm node requires 60-70 mask layers, with each layer costing anywhere from tens of thousands to hundreds of thousands of dollars to produce. Design complexity is also growing exponentially, with advanced nodes having increasingly complex design rules and longer verification cycles. According to industry data, the design cost for a single chip at the 2nm node has exceeded $1 billion. The accumulation of these costs has led to a historic turning point: cost per transistor is no longer declining and has even begun to reverse at the most advanced nodes.

This means the industry contract that held for fifty years is no longer valid. That contract was: with each generation of technology, more transistors, lower costs, better performance. Now, more transistors can still be achieved, but costs are no longer lower, and the magnitude of performance improvement is narrowing. For the entire industry, continuing along the traditional geometric scaling path means rapidly diminishing marginal returns and rapidly increasing marginal costs. This isn’t one company’s problem—it’s a systemic turning point. The industry needs new answers.

τ Scaling: Redefining the Optimization Target

Faced with this dilemma, Huawei’s proposed solution isn’t to search for another transistor structure or hope for some revolutionary new material, but to fundamentally change the optimization target itself.

This is the core of τ scaling theory: replace transistor size with the time constant τ as the primary metric for measuring progress.

This shift seems simple but is profound. Looking back over the past decades, the essential benefit brought by Moore’s Law was never “smaller transistors” themselves, but “faster systems.” Smaller transistors switch faster, denser interconnects mean shorter signal transmission distances, and higher integration means data crosses fewer boundaries. Each generation of technological progress has fundamentally been about compressing time—from picoseconds to nanoseconds, from nanoseconds to microseconds, from microseconds to seconds.

Geometric scaling is just one means of achieving this goal, not the only means.

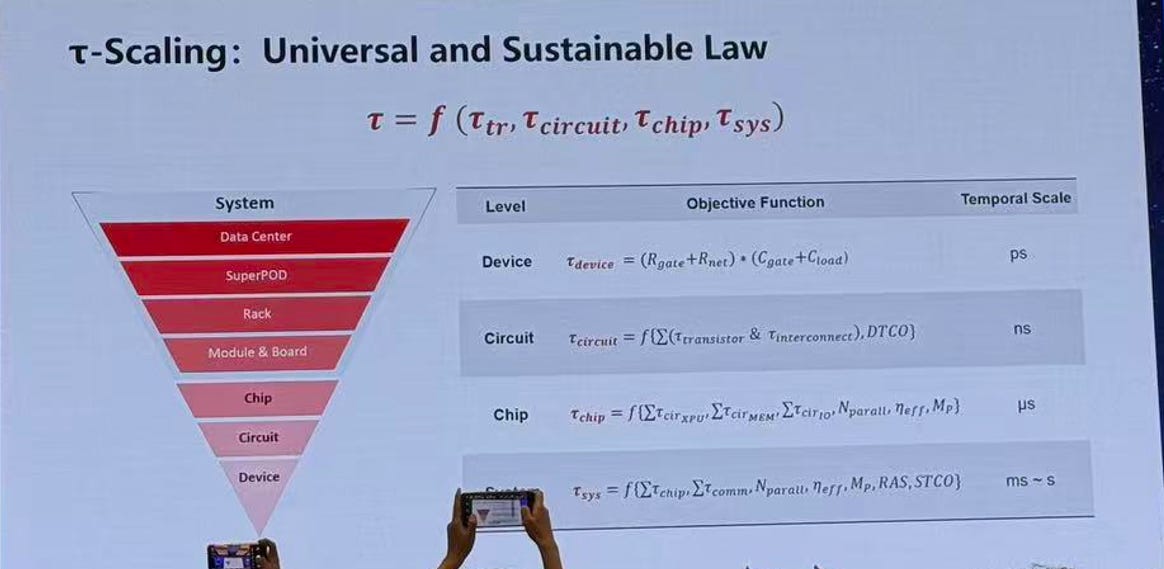

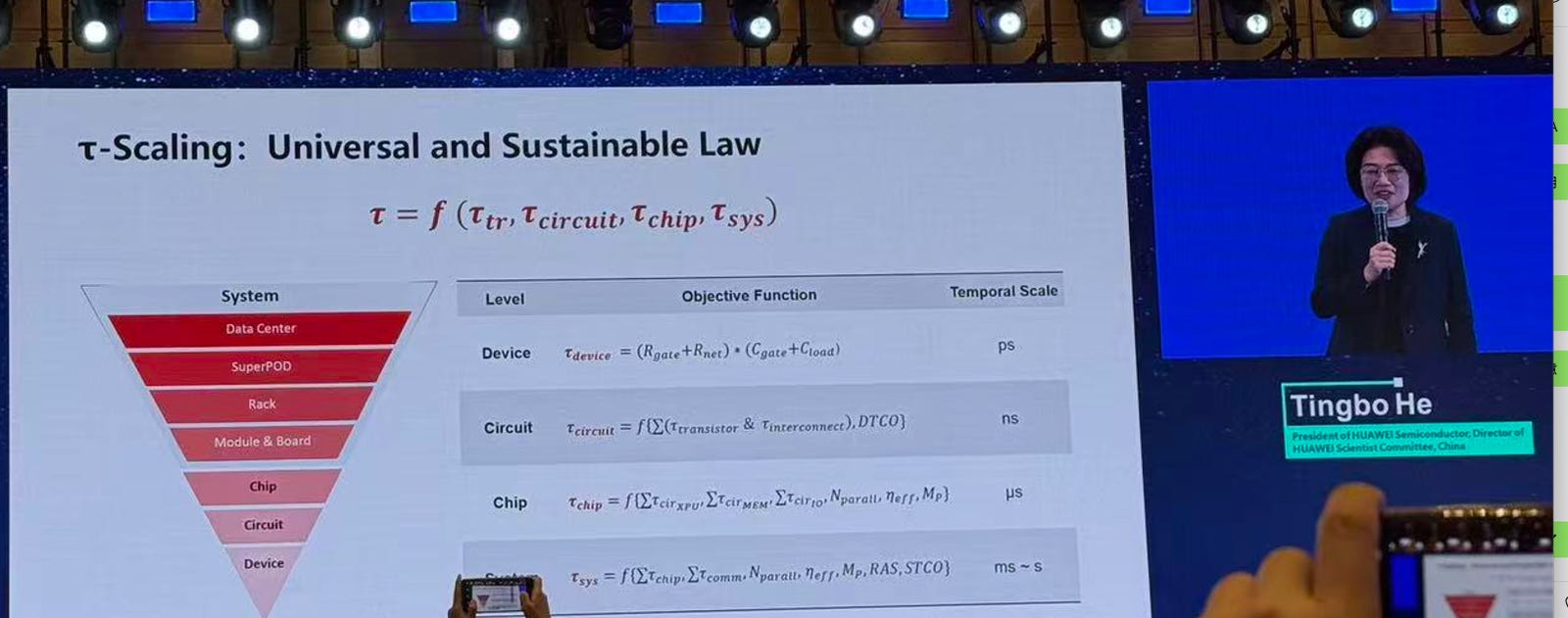

τ scaling theory decomposes this time constant into four levels: from transistor switching delay (picosecond level), to circuit RC propagation delay (nanosecond level), to chip computation and memory access delay (microsecond level), to system end-to-end response time (second level)—spanning a full 12 orders of magnitude. Each layer has its own optimization mechanisms, and τ is the unified language that spans all levels.

The value of this theory lies not only in providing a new metric but also in allowing process, circuit, architecture, and system engineers to discuss optimization using the same indicator and units for the first time. This is the first scaling principle since Dennard scaling that establishes a full-stack common optimization target.

From this perspective, τ scaling is indeed a methodology. It tells us: whether improving bus rates, adopting advanced packaging, optimizing memory hierarchies, or improving interconnect topologies, the ultimate goal is to reduce τ. This unified objective gives previously siloed technical directions a common evaluation standard.

LogicFolding: Circuit-Level Time Compression

If τ scaling is the theoretical framework, then LogicFolding is its first engineering implementation in mobile chips.

To understand LogicFolding, we need to first understand its fundamental difference from traditional 3D packaging.

TSMC’s SoIC and Intel’s Foveros—these advanced packaging technologies stack different functional chips (dies) vertically. For example, stacking a CPU chip with a cache chip, or stacking a logic chip with HBM memory (2.5D CoWoS). This is die-to-die stacking, where each die is an independent, complete chip during design and manufacturing.

LogicFolding takes a completely different path. It doesn’t stack multiple independent chips at the packaging stage, but rather, at the design stage, distributes a chip’s internal circuits—down to the gate and flip-flop level—across vertically stacked multiple wafer layers.

This is cell-to-cell folding, not die-to-die stacking.

Imagine traditional chip design: all logic gates are laid out on a single plane, and signals need to propagate through metal wires across this plane. Gates on critical paths may be distributed at different locations on the chip, and signal routing may be hundreds of micrometers or even millimeters long. The parasitic resistance and capacitance (RC) of these wires become the main bottleneck limiting clock frequency.

LogicFolding’s approach is: distribute logic gates on critical paths across upper and lower wafer layers, connected vertically through ultra-fine-pitch hybrid bonding (1.5-micrometer pitch). Signals that previously had to route far across a plane can now go directly “through” the wafer, taking a short vertical path.

How short is this vertical distance? Tens of micrometers. While the original planar routing might be hundreds of micrometers to millimeter scale. According to the formula τ = RC, when wire length is shortened, both resistance R and capacitance C drop significantly, and the time constant τ decreases dramatically.

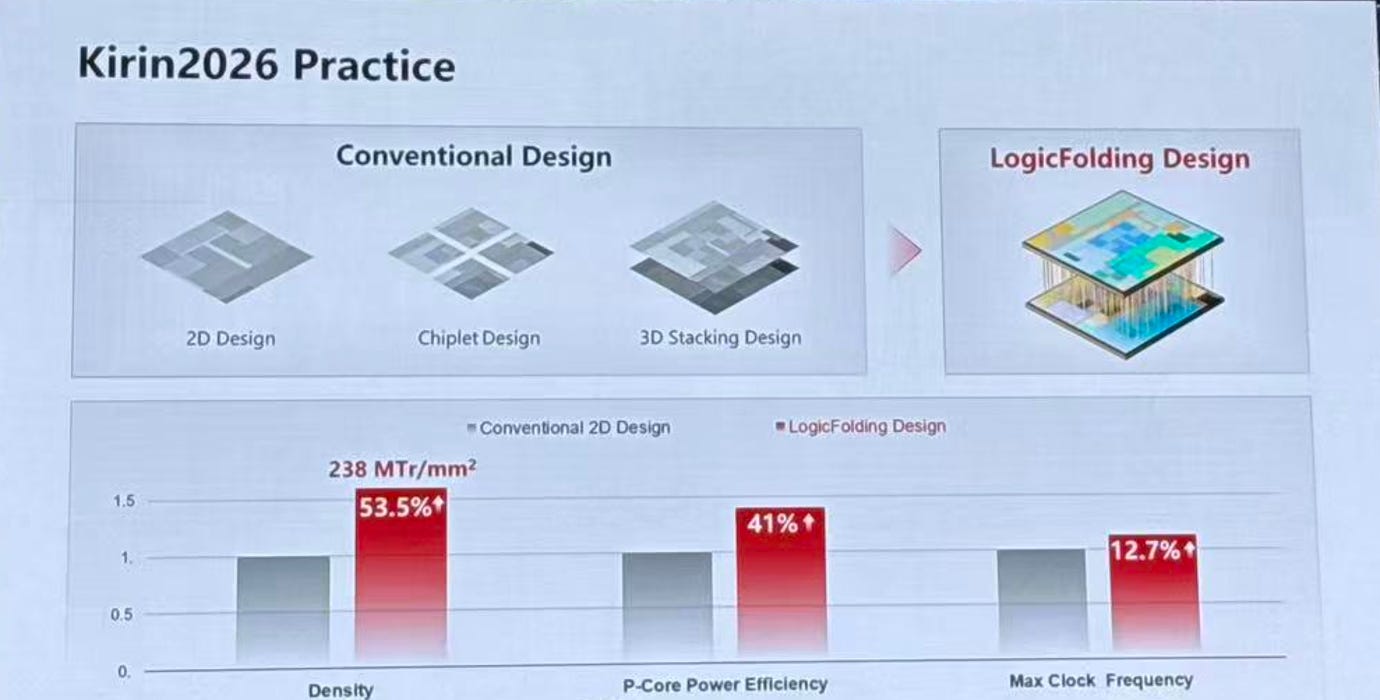

In Kirin 2026, this method brought tangible benefits:

Transistor density jumped from 155 MTr/mm² to 238 MTr/mm², a 55% increase. This magnitude would require three years and two process nodes to achieve in the traditional geometric scaling era.

Performance core energy efficiency improved by 41%, frequency increased by 13%, reaching 3.1 GHz.

SRAM operating frequency increased by over 40%, because bit lines and word lines were significantly shortened.

In a representative processor core, the number of clock buffers decreased by 50%, clock skew decreased by 25%, and routing length decreased by 30%.

Behind these numbers is a key fact: all these improvements were achieved at a fixed process node. No progression from 7nm to 5nm, no introduction of new lithography technology—just through reorganizing circuits in three-dimensional space, performance gains approaching one process node were achieved.

For LogicFolding to work, the “gear ratio” between hybrid bonding pitch and top metal layer pitch needs to be controlled below 3, ideally close to 1. Kirin 2026’s hybrid bonding pitch is 1.5 micrometers, while the top metal layer pitch is about 720 nanometers, giving a gear ratio of approximately 2. When this ratio approaches 1, the routing overhead at the bonding interface nearly disappears, and the two wafer layers truly behave as a continuous circuit fabric.

This requires coordination across the entire supply chain: TSV (through-silicon via) diameter and pitch must shrink to below 1.5 micrometers and 6 micrometers respectively, alignment accuracy must reach within 0.5 micrometers, and yield must approach 100% through intelligent redundancy design. This is a multi-year process development effort involving coordination among foundries, packaging houses, and equipment suppliers.
